As energy efficiency requirements continue to rise across industrial markets, YE3 and YE4 three-phase asynchronous motors have become widely used solutions for general-purpose machinery and equipment. These motors are designed to provide stable performance, reduced energy consumption, and compliance with international efficiency standards.
This article explains what a YE3 / YE4 three-phase asynchronous motor is, its main features, technical standards, operating conditions, and the key differences between YE3 and YE4 efficiency grades.
YE3 / YE4 Asynchronous Motor Definition

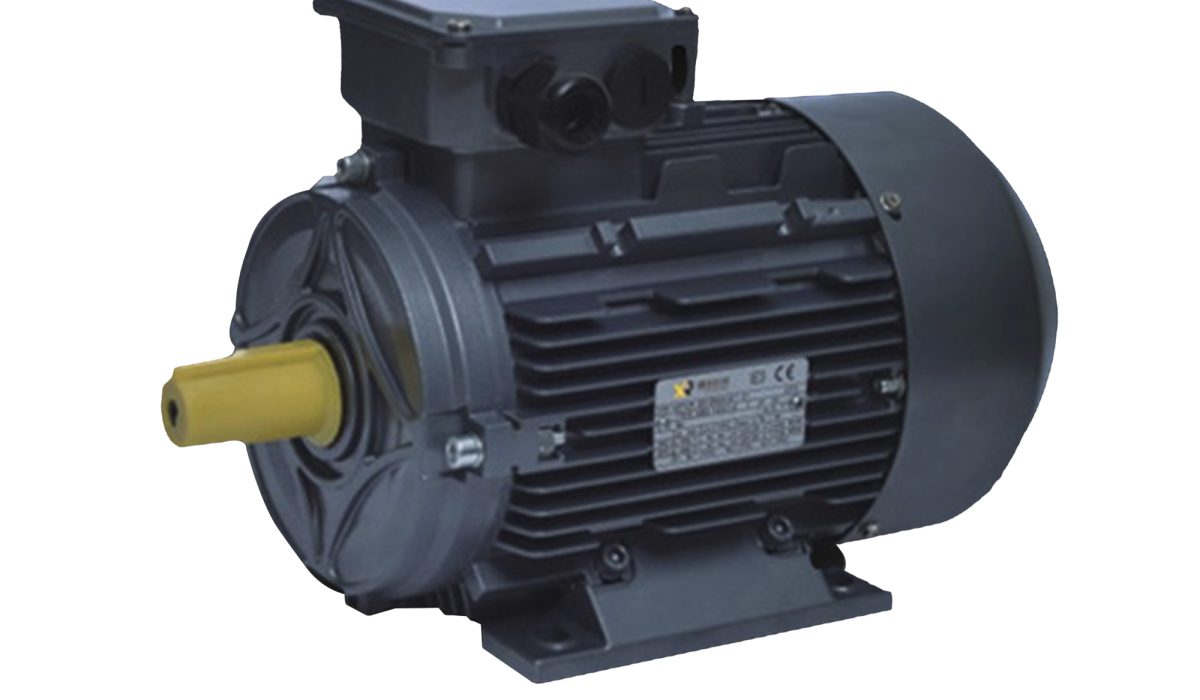

The YE3 / YE4 series motor is a totally enclosed, squirrel-cage rotor, three-phase asynchronous motor designed for high-efficiency and ultra-high-efficiency operation.
These motors are widely used in various types of general industrial machinery, including:
Metal cutting machine tools
Fans and blowers
Pumps
Pressure molding machines
Other mechanical drive systems
Because of their improved efficiency and reliable structure, YE3 and YE4 motors are considered ideal products for energy saving and emission reduction in modern industrial applications.
Motor Structure and Design Features
YE3 and YE4 motors adopt a squirrel-cage rotor structure, which offers simple construction, high mechanical strength, and stable long-term operation. The totally enclosed design protects internal components from dust and external contaminants, making the motor suitable for continuous industrial use.
Key design features include:
Totally enclosed motor structure
Squirrel-cage rotor design
Continuous duty operation (S1)
Optimized electromagnetic and mechanical performance
These features allow the motor to operate reliably in demanding environments while maintaining consistent efficiency.
Standards and Compliance
The power rating and mounting dimensions of YE3 / YE4 series motors comply with major international standards, ensuring compatibility with a wide range of industrial equipment.
Applicable Standards
IEC International Standard
DIN 42673 (Germany)
Efficiency classification: IEC 60034-30-1
Loss and efficiency testing: IEC 60034-2-1
Protection and Cooling
Protection Grade: IP55
Cooling Method: IC411
Duty Type: Continuous duty (S1)
Compliance with these standards ensures stable performance, safety, and easy replacement or integration in global markets.
Electrical Ratings and Operating Conditions
YE3 / YE4 three-phase asynchronous motors are designed for standard industrial power systems and environments.
Standard Electrical Parameters
Rated Voltage: 380V
Rated Frequency: 50Hz
Installation and Environment
Maximum installation altitude: 1000 meters
Maximum ambient temperature: 40°C
Minimum ambient temperature: –15°C
These operating conditions allow the motor to perform reliably across most industrial sites without additional modification.
Customization and Optional Configurations
The YE3 / YE4 motor can be customized according to user requirements to meet specific application needs.
Available Custom Options
Electrical customization
Different voltages
Different frequencies
Mechanical customization
Biaxial or extended shaft designs
Environmental adaptations
Dry or wet conditions
Tropical-type motor designs
Monitoring and protection options
Winding temperature measuring devices
Stator winding temperature switches
Bearing temperature measuring devices
Winding heating zones
These options allow the motor to be adapted for special working conditions and long-term monitoring requirements.
Difference Between YE3 and YE4 Motors
The main difference between YE3 and YE4 motors lies in their energy efficiency grade.
YE3 Motor:
Corresponds to a high-efficiency motor level and is suitable for most general industrial applications.YE4 Motor:
Corresponds to a super ultra-high efficiency level, offering higher efficiency than YE3 and lower power loss during operation.
Because YE4 motors require advanced materials, precise manufacturing processes, and strict quality control, only a limited number of factories in China are capable of producing true YE4 ultra-high-efficiency three-phase asynchronous motors.
Higher efficiency means:
Reduced energy consumption
Lower operating costs
Better performance in long-term continuous operation
Model Definition Explanation
The YE3 / YE4 motor model code provides important technical information about the motor configuration.
Example Model Definition
Y – Asynchronous motor
E4 – Super ultra-high efficiency (IE4)
132 – Center height of frame (mm)
S1 – Length of core / continuous duty
2 – Number of poles
Understanding the model definition helps users select the correct motor for their application.
Conclusion
YE3 and YE4 three-phase asynchronous motors are designed to meet modern industrial demands for efficiency, reliability, and standard compliance. With a totally enclosed squirrel-cage structure, international standard dimensions, and flexible customization options, these motors are suitable for a wide range of general-purpose machinery.
The choice between YE3 and YE4 depends mainly on efficiency requirements and operating cost considerations. For applications with long running hours or higher energy-saving goals, YE4 motors provide clear advantages.
As industries continue to move toward higher efficiency and lower emissions, YE3 and YE4 asynchronous motors remain practical and future-ready motor solutions.
